MB AM5 Asrock B650M PG Lightning

Na stanju

13.552 рсд

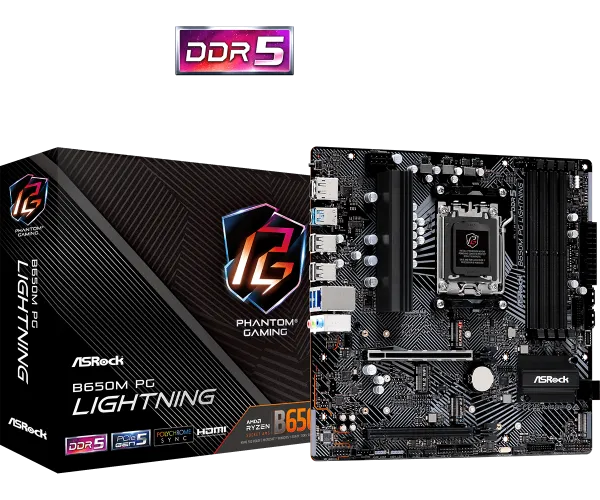

Proizvod: ASRock B650M PG Lightning
Tip: Matična ploča, Micro‑ATX format
Čipset: AMD B650
Procesorsko ležište (socket): AM5 — podržava AMD Ryzen 9000, 8000 i 7000 serije procesora
Memorija: 4 × DDR5 DIMM slotovi, Dual‑Channel
Podržana brzina memorije: do 7200 MT/s (OC)
Maksimalna ukupna memorija: oko 192 GB (4× DIMM)
PCIe slotovi: 1 × PCIe 4.0 ×16, 1 × PCIe 3.0 ×16
M.2 slotovi: 1 × Blazing M.2 (PCIe Gen5 ×4), 1 × Hyper M.2 (PCIe Gen4 ×4), 1 × M.2 (PCIe Gen4 ×2), 1 × M.2 Key‑E za Wi‑Fi
SATA portovi: 4 × SATA III
USB:

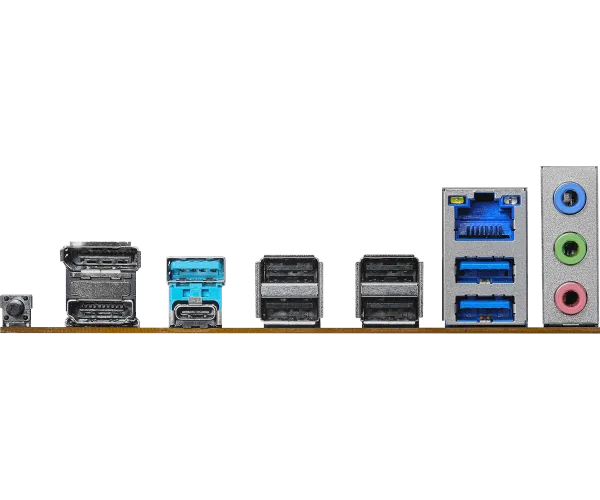

1 × USB 3.2 Gen2 Type‑A (zadnji),
1 × USB 3.2 Gen2 Type‑C (zadnji),
1 × USB 3.2 Gen1 Type‑C (prednji),
6 × USB 3.2 Gen1 Type‑A
LAN: Phantom Gaming 2.5 G Ethernet (Dragon RTL8125BG)
Audio: Realtek ALC897 7.1‑kanalni HD audio
Video izlazi: 1 × HDMI, 1 × DisplayPort
Podrška za RAID: SATA i NVMe RAID (npr. 0, 1, 10)
BIOS: UEFI AMI sa BIOS Flashback podrškom
Prednji konektori: USB 3.2 Gen1, USB‑C
RGB konektori i headeri za ventilatore: da (LED, CPU i šasijski fan konektori)
