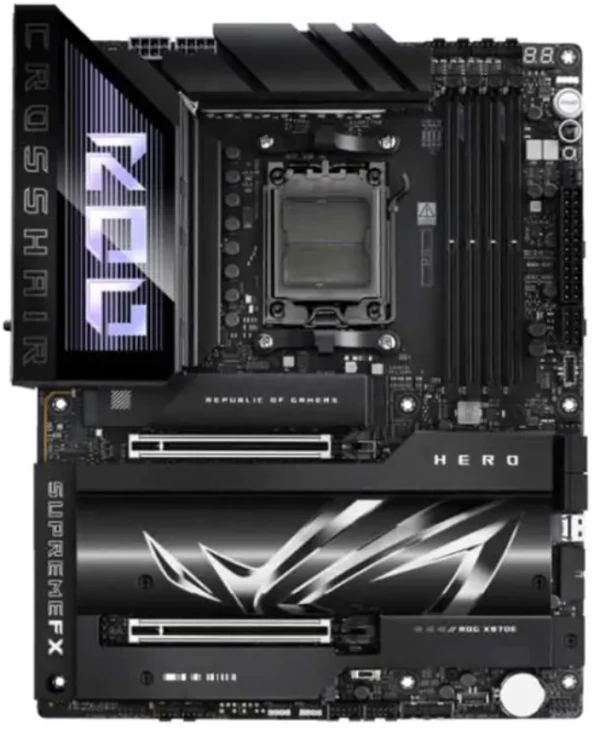

MB AM5 ASUS ROG CROSSHAIR X870E HERO ATX
81.519 рсд
| Brend | ASUS |
| Model | ROG CROSSHAIR X870E HERO |
| Socket | AM5 |
| Čipset | AMD X870E |
| Format | ATX |
| Podržani procesori | AMD Ryzen 7000 / 8000 / 9000 |
| RAM | 4 × DDR5 DIMM |
| Maks. RAM | 256 GB |
| Maks. brzina RAM-a | Do 8200+ MT/s (OC) |
| PCIe slotovi | 2 × PCIe 5.0 x16 |
| M.2 slotovi | 5 × M.2 |
| SATA | 4 × SATA 6 Gb/s |
| LAN | 1 × 2.5GbE + 1 × 5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| HDMI | 1 × HDMI 2.1 |
| USB4 | 2 × USB-C 40 Gbps |
| USB pozadi | 10 portova ukupno |
| Audio | ROG SupremeFX 7.1, Realtek ALC4082 |
| RGB | Da, Aura Sync / 3 × ARGB Gen2 |
| Dimenzije | 30,5 × 24,4 cm |
+381 65 321 05 02 Pokreni Live Chat
Niska Cena
Garancija podudaranja cene
Zagrantavona Oprema.
Uvek tačan deo
Interni Stručnjaci.
Poznajemo svoje proizvode
Jednostavan Povrat
Brzo i bez problema
Opis
| Brend | ASUS |
| Model | ROG CROSSHAIR X870E HERO |
| Socket | AM5 |
| Čipset | AMD X870E |
| Format | ATX |
| Podržani procesori | AMD Ryzen 7000 / 8000 / 9000 |
| RAM | 4 × DDR5 DIMM |
| Maks. RAM | 256 GB |
| Maks. brzina RAM-a | Do 8200+ MT/s (OC) |
| PCIe slotovi | 2 × PCIe 5.0 x16 |
| M.2 slotovi | 5 × M.2 |
| SATA | 4 × SATA 6 Gb/s |
| LAN | 1 × 2.5GbE + 1 × 5GbE |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| HDMI | 1 × HDMI 2.1 |
| USB4 | 2 × USB-C 40 Gbps |
| USB pozadi | 10 portova ukupno |
| Audio | ROG SupremeFX 7.1, Realtek ALC4082 |
| RGB | Da, Aura Sync / 3 × ARGB Gen2 |
| Dimenzije | 30,5 × 24,4 cm |
